Trimming machine

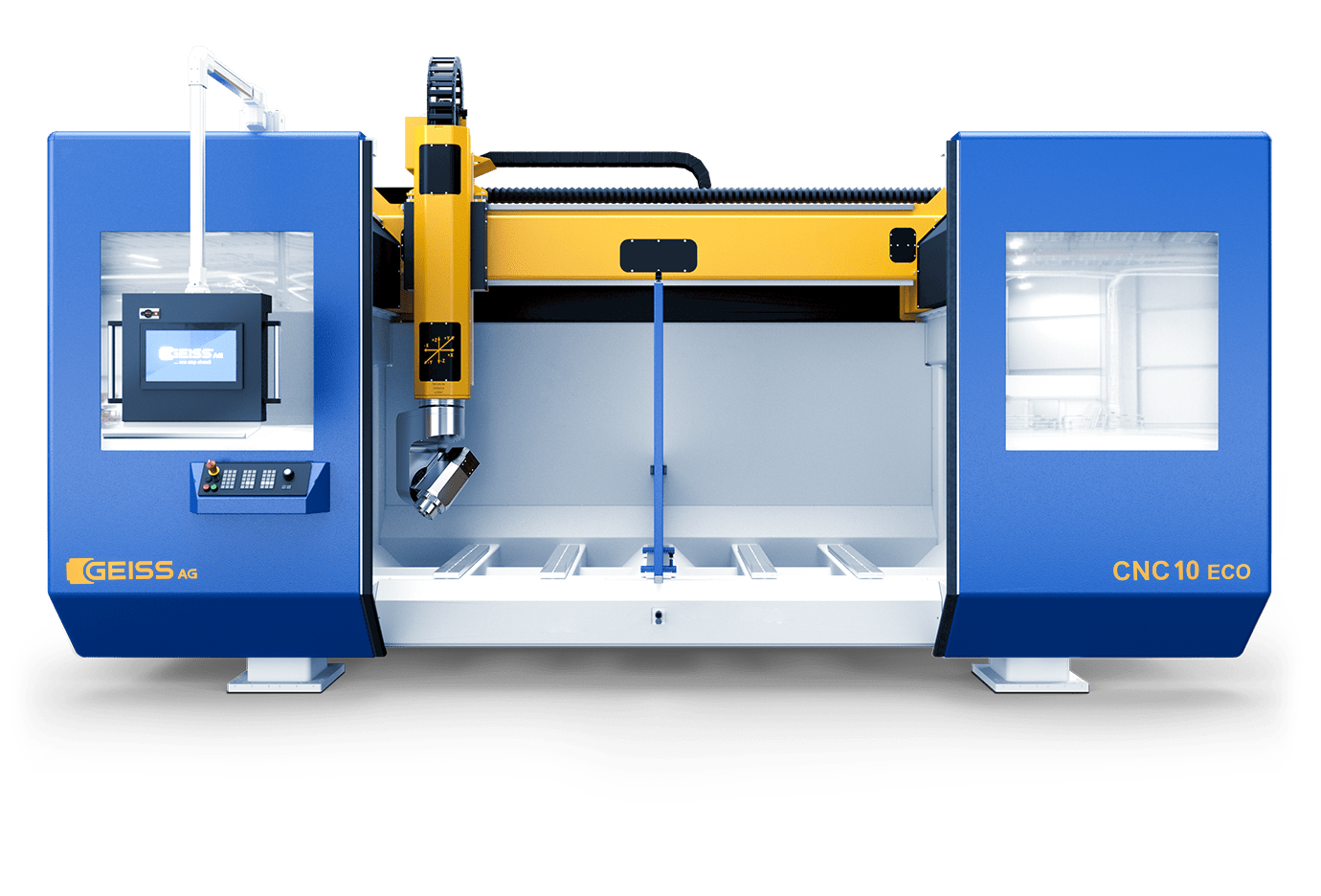

CNC Trimming machine

Set new standards with our CNC 10 trimming machine – the speed king among CNC trimming machines. It combines outstanding speed and performance, opens up unimagined possibilities thanks to customised parametrics and proves that innovative design and high functionality go hand in hand.
The CNC 10 is characterised by its flexibility in processing a wide range of materials, making it the ideal solution for a variety of industries. In addition, our first-class service offers you comprehensive support from customised machine planning to the completion of the product.

The Speed King
by GEISS

Experience the future of CNC trimming technology with the CNC 10 trimming machine: a fusion of unrivalled speed, precision and reliability.

Features

Unlimited performance

The CNC 10 trimming machine, your speed king in CNC machining, offers more than just speed. The machine is designed to process a wide range of materials with high precision – in a wide variety of industries.

Trimming spindles & heads

For a wide range of challenges.

Central screen

Two separate processing zones in one machine. Parallel trimming and loading process.

Linearmotors

For the portals.

Machine access

Optimal through front doors without an upper crossbeam.

Features

Maximum efficiency,
maximum precision.

Concepts for chip extraction to ensure an efficient and clean working environment.
Customised to your part size for maximum flexibility.
At the cutting edge of technology – Siemens SINUMERIK ONE.
With integrated machine table for maximum precision and stability.
Safe operating mode selection for optimised operating safety.
High stiffness despite low mass ensures low drive power and excellent machine dynamics.
Effective shielding and protection of key drive components by using bellows.

Benefits

at a glance

Highest precision in manufacturing

Achieving the highest quality standards in production

Integration of a wide variety of trimming heads

Weight-optimised axle design

Efficient chip extraction concepts

High stiffness of the machine housing and machine axes

Compact machine design

Modernised appearance

Perfect parametric: No more compromises in machine size

Maximum productivity through intelligent automation concepts

Form follows function: Your product determines the machine form

Longevity through high product quality and the use of quality components

Machine variants

Your production,
your choice.

Whether for plastics processing or model and tool making, the CNC 10 trimming machine from GEISS is specially tailored to your application requirements.

For post-processing For model and tool making
Area of application Contour trimming in plastic, composite, or aluminum parts Generation of freeform surfaces from plastic, wood, or aluminum
Trimming heads Trimming heads in different performance levels with optimised component accessibility Powerful trimming heads for tool making
Drive technology Ball screw spindles or linear motors Ball screw spindles or linear motors
Optional measuring and control technology Probing systems, laser measurement, error compensation, direct measuring system in all axes, … Probing systems, laser measurement, error compensation, direct measuring system in all axes, …
Optional machine equipment Shuttle tables, rotary tables, tool changers, machine enclosures, extraction and chip conveyor systems, … Shuttle tables, rotary tables, tool changers, machine enclosures, extraction and chip conveyor systems, …
Applications

When is the CNC 10 the right choice?

The CNC 10 trimming machine is the ultimate choice for projects that require speed, precision and versatility. Discover how the CNC 10 optimises your production processes and raises your efficiency to a new level.

Applications

CNC 10 for sanitary products

The CNC 10 trimming machine offers special clamping systems that are perfectly tailored to the requirements of the sanitary industry. With its high performance, it enables the machining of sanitary parts such as bathtubs, toilet cubicles, shower trays and shower discs.

Applications

CNC 10 for caravan construction

In caravan construction, the CNC 10 trimming machine offers precision and quality for the production of interior and exterior components. Its accuracy and versatility are essential for the production of high-quality, durable caravan components.

Applications

CNC 10 for agricultural machinery

For agriculture, the CNC 10 trimming machine is perfect for producing robust exterior panelling and components. It delivers precise results that are essential for the durability and functionality of agricultural machinery.

Applications

CNC 10 for aviation

The CNC 10 trimming machine is ideal for the production of components in the aviation and transport industry – from interior panelling, seat shells and luggage compartments to air ducts. Combined trimming and ultrasonic cutting machines also enable the special processing of honeycomb materials.

Applications

CNC 10 for medical technology

In medical technology, the CNC 10 milling machine is the ideal solution for machining housings for medical devices. Thanks to its precise control and innovative extraction systems, it fulfils the high requirements of this industry.

Applications

CNC 10 for consumer goods

The CNC 10 trimming machine offers flexibility, high processing speed and ease of use, making it the ideal choice for the consumer goods industry. It enables the production of high-quality plastic parts such as travel cases.

Applications

CNC 10 for transport systems

The CNC 10 trimming machine is a powerful tool for the production of transport systems. With its precise cutting function and high throughput, it enables efficient processing of plastic moulded parts such as trays.

Applications

CNC 10 for sporting goods

Whether ski bases, protective equipment or other sporting goods – thanks to its excellent precision and versatility in material processing, the trimming machine enables the production of complex components with high accuracy.

Applications

CNC 10 for the advertising industry

The CNC 10 trimming machine sets standards in the advertising industry. With its large processing area, high speed and precision, it is ideal for the fast and precise production of display stands and POS materials. Simple programming enables efficient work and first-class results.

Applications

CNC 10 for the construction industry

Thanks to the large processing area, the trimming machine can easily process components of different sizes. Its robust design and high precision enable precise and repeatable processing of components and panelling made of various materials, including plastics and composites.

Technical details

Experience CNC top performance

Standard (ball screw spindles) Linear motors
Speed Up to 84 m/min Up to 180 m/min
Acceleration Up to 7 m/s² Up to 15 m/s²
Machine sizes From 1000 x 600 x 310 mm From 1000 x 600 x 310 mm
Travel distances Maximum 6 m Up to 32 m
Trimming spindles Various options available Various options available
Your title

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Machine bed with fixed machine table as a stable foundation
Portal for the trimming head with X-, Y- and Z-axis
Trimming head with high-frequency spindle for precise trimming processes
SINUMERIK One: The latest and most powerful CNC control from Siemens for movements and trimming programmes
Control panel with touchscreen display and keypad
Machine control panel
Vacuum equipment with vacuum pump, vacuum valve and release valve
Clamping system for secure fixation of the workpiece
Protective covers for operator protection during the trimming process
Cooling system for tool and workpiece cooling
Lubrication system to reduce friction and wear on machine components
Your title

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Trimming heads and trimming spindles for a wide range of challenges
Linear motors
Other processing methods such as ultrasonic cutting, cold knife cutting or laser cutting
Additional vertical axes
Automatic tool changing systems
Sideshuttle, front shuttle or rotary tables for ergonomic loading of the machine
Machine enclosure
Partition for dual-station operation
Chip and dust disposal systems
Alternative vacuum equipment for workpiece clamping
Measuring devices for various measurement and calibration tasks
Software options for additional control functions
Options for data acquisition and data logging
and much more.

Maximizing your production efficiency

We accompany you in your project from start to finish. Once you present your product to us, we work closely with you to identify the specific requirements for the CNC trimming machine and to find the appropriate equipment. Every step is focused on quality and precision to ensure that your end product meets the highest standards.
The planning phase concludes with the design of a prototype tool. Upon your approval, we manufacture your specially customized trimming machine. Our experts are by your side throughout the entire process to ensure the success of your project and provide you with first-class service.

HMI software SINUMERIK Operate

The Siemens SINUMERIK ONE control integrated into our machines sets new standards in performance and efficiency. With 30% increased NCK performance and innovative Safety Integrated Plus technology, maximum safety and ease of operation are ensured. Enhanced by modern control components such as the 19″ widescreen TFT touch display and extensive programming capabilities, it represents advanced precision and flexibility in CNC machining.
